Spring Plunger
Spring Plunger Manufacturer
Spring plunger manufacturer - stainless steel TS and carbon steel TSTG spring plungers in M3 to M12, with loads from 1 N to 50 N. Wholesale supply with OEM/ODM customization.
Specifications
- Type
- Spring plunger (screw-in)
- Series
- TS (stainless steel) and TSTG (carbon steel)
- Thread sizes
- M3, M4, M5, M6, M8, M10, M12
- Load range
- 1 - 50 N by size
- Materials
- TS: SUS304 body, pin, spring; TSTG: S45C body and spring, SWP pin

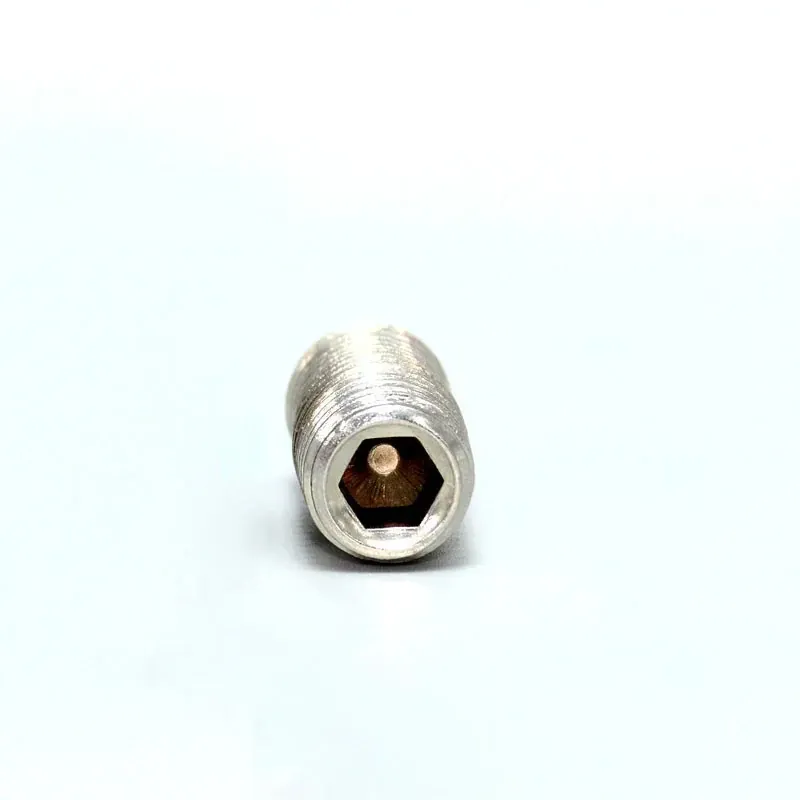

- Drive
- Hex socket
- Customization
- OEM/ODM to drawing or sample
- Brand
- SKN Fastener Co., Ltd.
- Origin
- Made in Shenzhen, China
- Quotation
- Send drawing or sample to sales@sknfastener.com
Overview

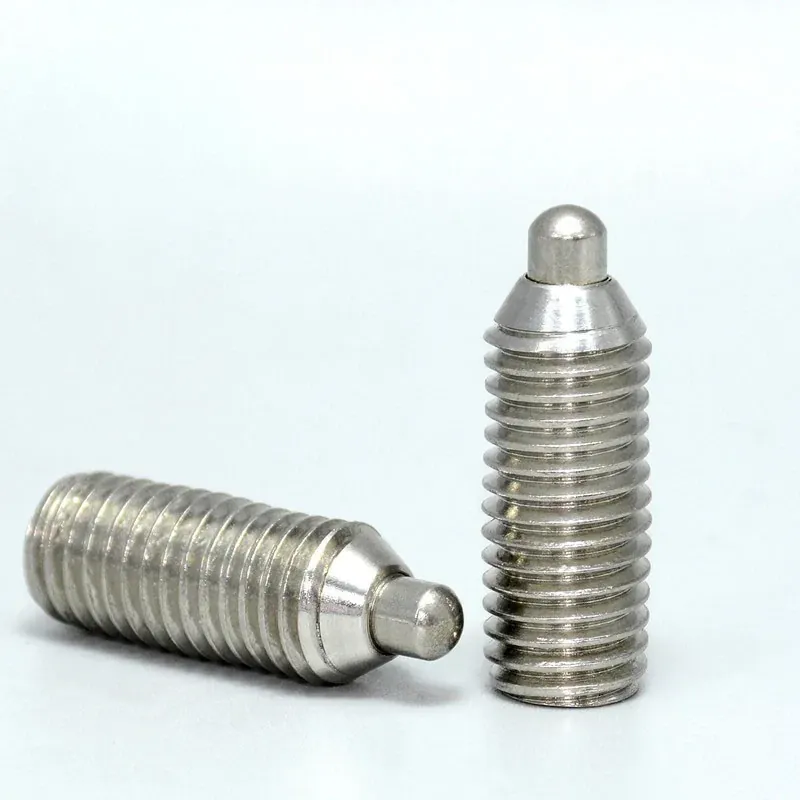

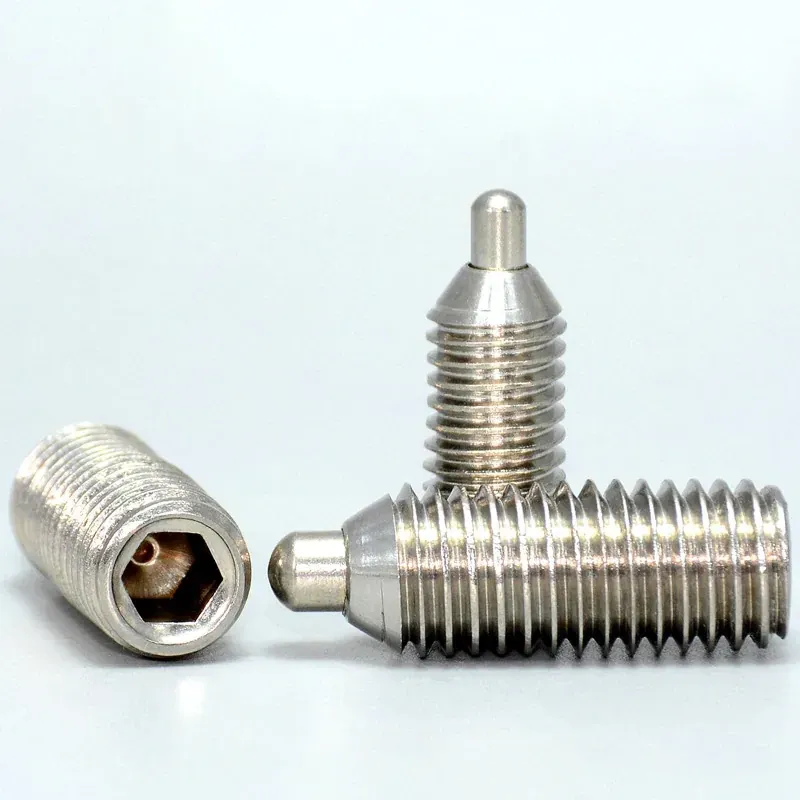

A spring plunger uses a spring-loaded pin in a threaded body. The body screws into a fixture with a hex socket drive, and the pin presses into a mating hole or groove to position, index, or hold a part. The TS series is stainless steel throughout; the TSTG series uses a carbon steel body. Sizes cover M3 to M12.
Available Sizes and Options
Fifteen standard length and load combinations from M3 to M12, with load values from 1 N to 50 N. Send the thread size, length, and quantity, or a drawing - custom versions are manufactured under our OEM/ODM service.
Spring plunger dimensions (mm) and load range (N). TS = stainless steel; TSTG = carbon steel.

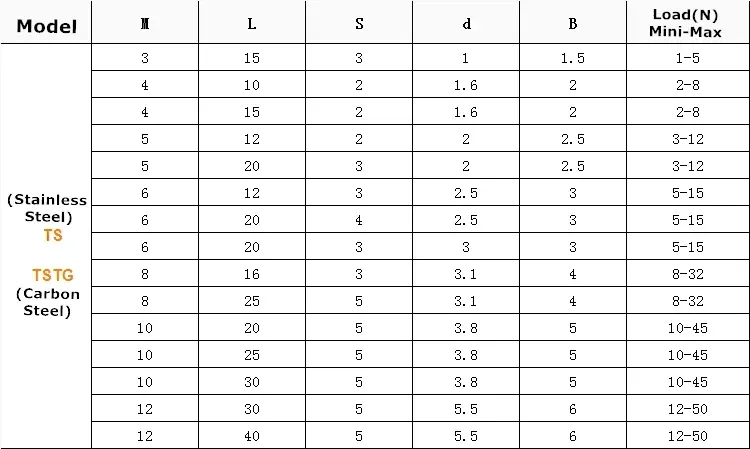

Model | M | L | S | d | B | Load min (N) | Load max (N) |
|---|---|---|---|---|---|---|---|
TS / TSTG | M3 | 15 | 3 | 1 | 1.5 | 1 | 5 |
TS / TSTG | M4 | 10 | 2 | 1.6 | 2 | 2 | 8 |
TS / TSTG | M4 | 15 | 2 | 1.6 | 2 | 2 | 8 |
TS / TSTG | M5 | 12 | 2 | 2 | 2.5 | 3 | 12 |
TS / TSTG | M5 | 20 | 3 | 2 | 2.5 | 3 | 12 |
TS / TSTG | M6 | 12 | 3 | 2.5 | 3 | 5 | 15 |
TS / TSTG | M6 | 20 | 4 | 2.5 | 3 | 5 | 15 |
TS / TSTG | M6 | 20 | 3 | 3 | 3 | 5 | 15 |
TS / TSTG | M8 | 16 | 3 | 3.1 | 4 | 8 | 32 |
TS / TSTG | M8 | 25 | 5 | 3.1 | 4 | 8 | 32 |
TS / TSTG | M10 | 20 | 5 | 3.8 | 5 | 10 | 45 |
TS / TSTG | M10 | 25 | 5 | 3.8 | 5 | 10 | 45 |
TS / TSTG | M10 | 30 | 5 | 3.8 | 5 | 10 | 45 |
TS / TSTG | M12 | 30 | 5 | 5.5 | 6 | 12 | 50 |
TS / TSTG | M12 | 40 | 5 | 5.5 | 6 | 12 | 50 |
Materials and Finishes

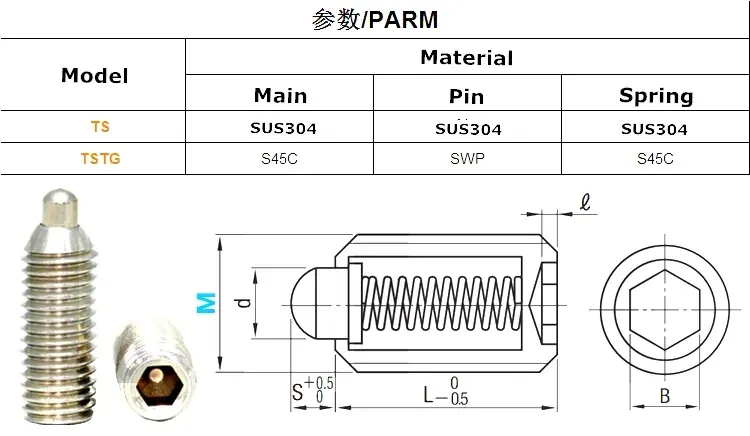

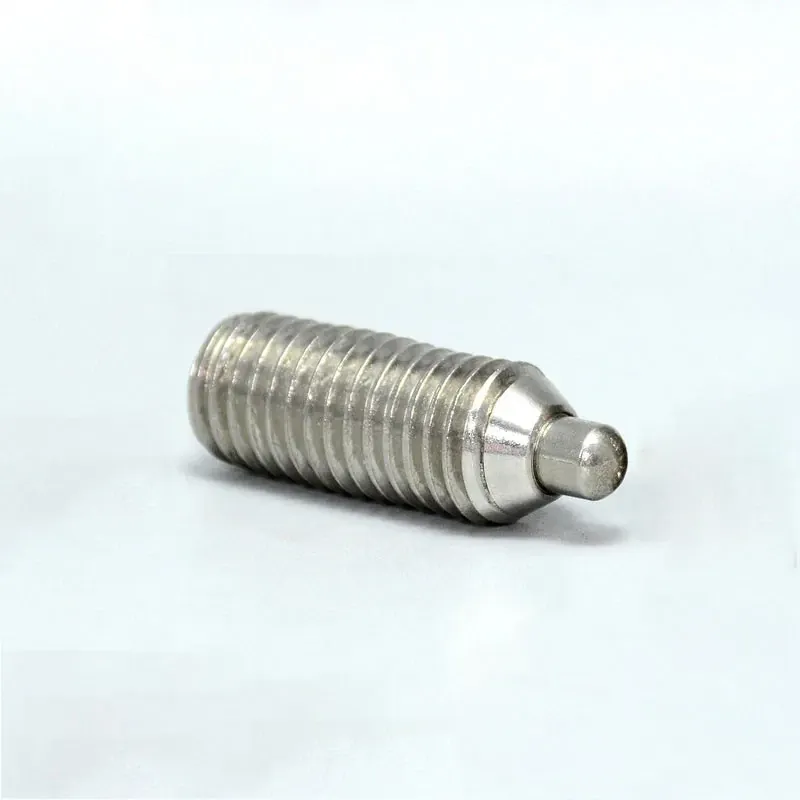

TS series: SUS304 main body, pin, and spring - stainless steel throughout. TSTG series: S45C main body and spring with an SWP pin. Special materials and finishes follow your drawing.
Applications
Positioning, indexing, and detent functions on fixtures, jigs, dies, and machine parts. SKN fasteners serve six industries: manufacturing, aviation equipment, industrial equipment, medical devices, stage and entertainment, and the marine industry.
Buyer FAQs
Q: What information do you need to quote?
A: The series (TS or TSTG), thread size (M3 to M12), length, and quantity. A drawing or sample speeds everything up.
Q: Can you manufacture from a drawing or sample?
A: Yes. Send the drawing or sample and we manufacture to match under our OEM/ODM service.
Q: Do you supply bulk orders worldwide?
A: Yes. We supply B2B customers, wholesalers, and OEM clients worldwide from Shenzhen with export packing.
